Revision as of 14:35, 18 February 2018
The angle of the light beam between points where the intensity has fallen to a fraction of the maximum intensity within the beam.
The vertical divergence is typically specified between the first points where the intensity falls to 50% of the maximum.

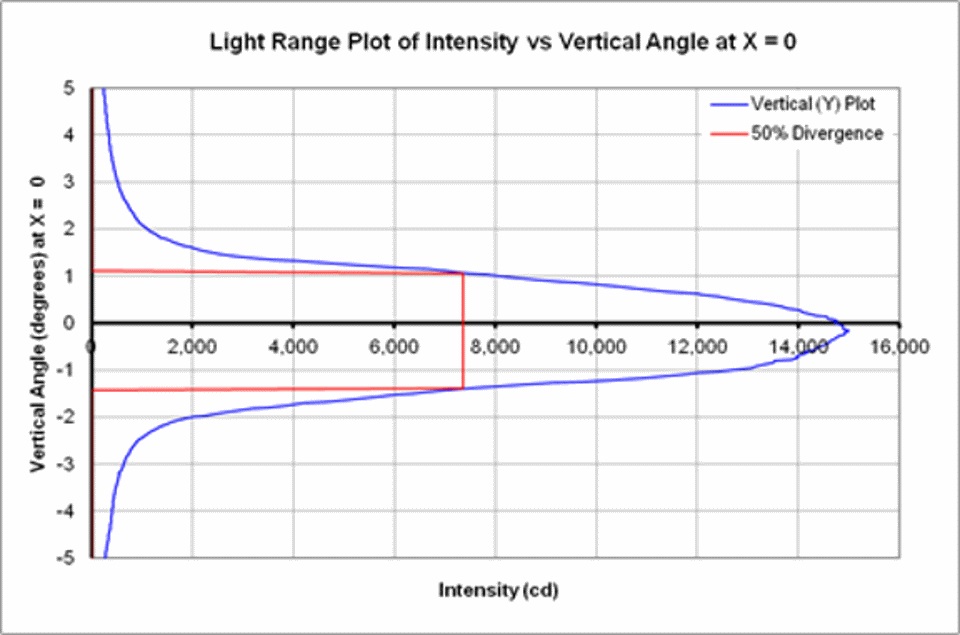

figure 1
Source: ENG7, Guideline G1065
