Response Time

From International Dictionary of Marine Aids to Navigation
Jump to navigation Jump to search

5-2-280

The time interval between the beginning of a sustained disturbance and the instant when the resulting change in the output signal reaches a specified fraction of its final steady-state value, either before overshoot or in the absence of overshoot.

Ch5 Fig3.jpg

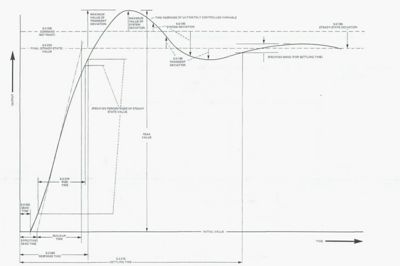

Figure 3 - Typical time response of a system to a step increase of input.

Reference: I.E.C.




Please note that this is the term as it stands in the original IALA Dictionary edition (1970-1989)
